£14.99

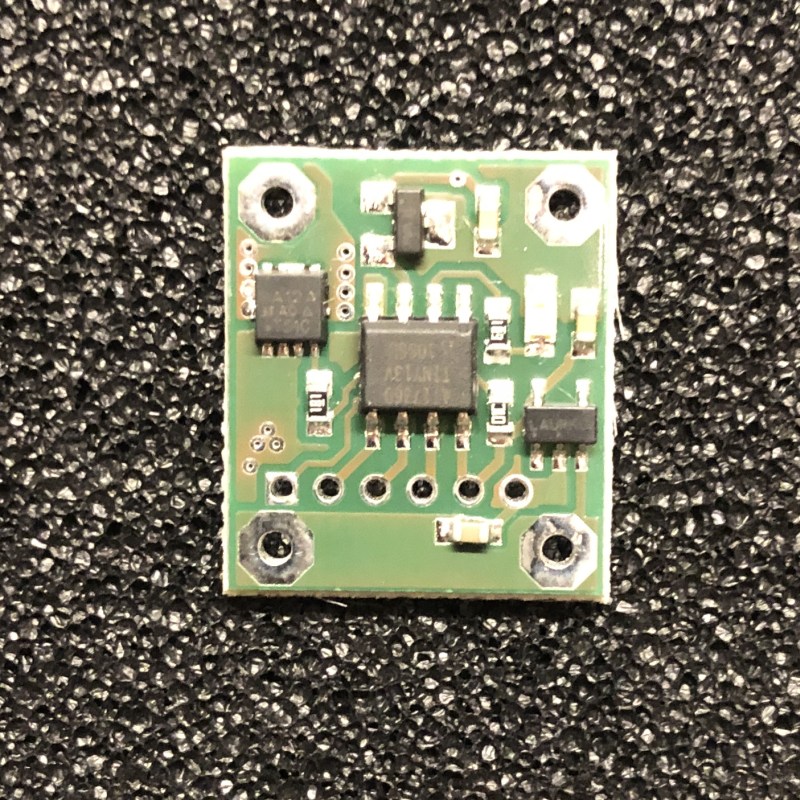

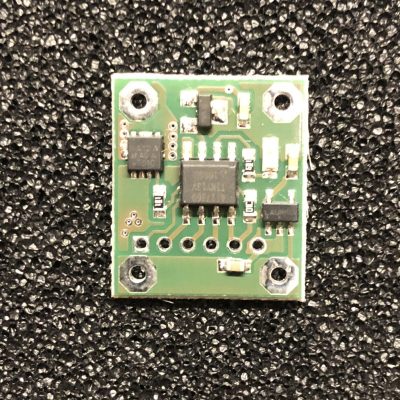

Very small magnetic switch for activating electronic assemblies such as altimeters, data loggers, etc.
The switch is activated by holding a magnet near for 1 second.
Only when a magnetic field is continuously applied for another 2 seconds is the device switched off.
A bright red LED indicates switching on.
This allows activation through the model housing, without flaps, switches or holes.
Simply hold on to the magnet and off you go!
Works with a microcontroller (ATTiny13A) that guarantees safety.
Accidental switching off by short magnetic field is impossible.
The Magswitch is connected by soldering of wires to 4 solder pads with 1.5m hole.
Mounting with double-sided adhesive tape.
Technical data:
Operating voltage: 2.7-12V (1s or 2s lipo possible)
Switching capacity approx. 10A
Power consumption in switched off state: Only 2 µA at 7,4V
Power consumption when switched off: approx. 1.5Â mAh per month
Operating time in switched off state at a 250 mAh 2s-Lipo approx. 8Â years!
Dimensions: 19×16,5 mm
Weight: 1,3 gram
Delivery without magnet!
